System for waterproofing and installing ceramic tiles on new balconies and terraces

New building

Balcony/Terrace

Waterproofing

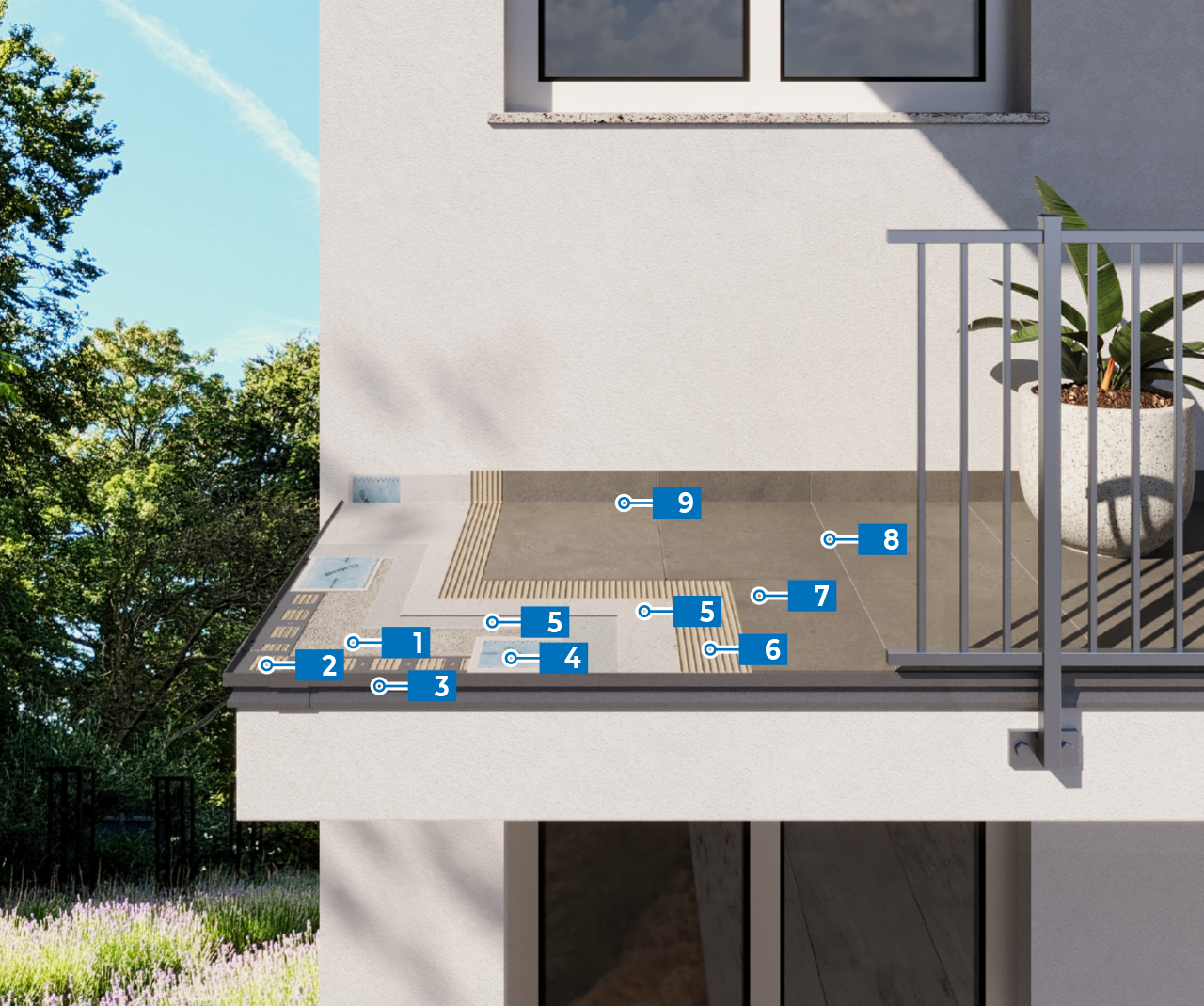

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Cementitious screed

TOPCEM PRONTO

Create a sloping screed 40 to 80 mm thick.
Position a series of levelling guides, spread the mix, carefully compact the mix and float-finish the surface.

2

Adhesive

KERAFLEX MAXI S1 ZERO

Spread the adhesive on the screed on the balcony edging with a notched trowel to install the edging profiles.

3

Edging profile for balconies
PROTEC CPGV

Apply the edging profiles to protect and finish the outer edges of the balcony.

If necessary, provide additional mechanical fastening.
Maintain a distance of approx. 5 mm between profile-profile and between profile-90°outside/inside corner. At joints between profiles, apply the special joint piece.

4

Rubber tape

MAPEBAND EASY

Apply the tape with MONOLASTIC TURBO ZERO to waterproof joints, all the corners and edges between the substrate and perimeter walls.

5

Cementitious waterproofing

MONOLASTIC TURBO ZERO

Apply two layers of product with a trowel, roller or brush to form a thickness of at least 0.8 mm.

6

Adhesive

KERAFLEX MAXI S1 ZERO

Apply the adhesive using the double-buttering method with a notched trowel suitable for the type and format of the tiles so that the back of the tiles is sufficiently wetted with adhesive.
To maintain the correct grout size and avoid the formation of lippage between adjacent tiles during installation, use the levelling systems from the MAPELEVEL range.

7

Porcelain tiles

8

Grout

ULTRACOLOR PLUS

Once the adhesive has set, carefully fill the grouts to their full depth using a rubber trowel without leaving gaps or steps.
When the grout loses its plasticity, clean the excess product with a wet hard cellulose sponge.
It is possible to finish the surface also when the mix is partially set, with a damp Scotch-Brite^® sponge. Remove any cementitious residues with ULTRACARE KERANET.

9

Sealant

MAPEFOAM

MAPESIL AC ECO

Seal the perimeter and expansion joints after inserting MAPEFOAM to set the correct depth, then finish off the sealant surface with ULTRACARE SMOOTH SILICONE.
