System for quickly waterproofing and installing decorative wall coverings and LVT/SPC in damp environments

New building

Wet environments

Installation of LVT

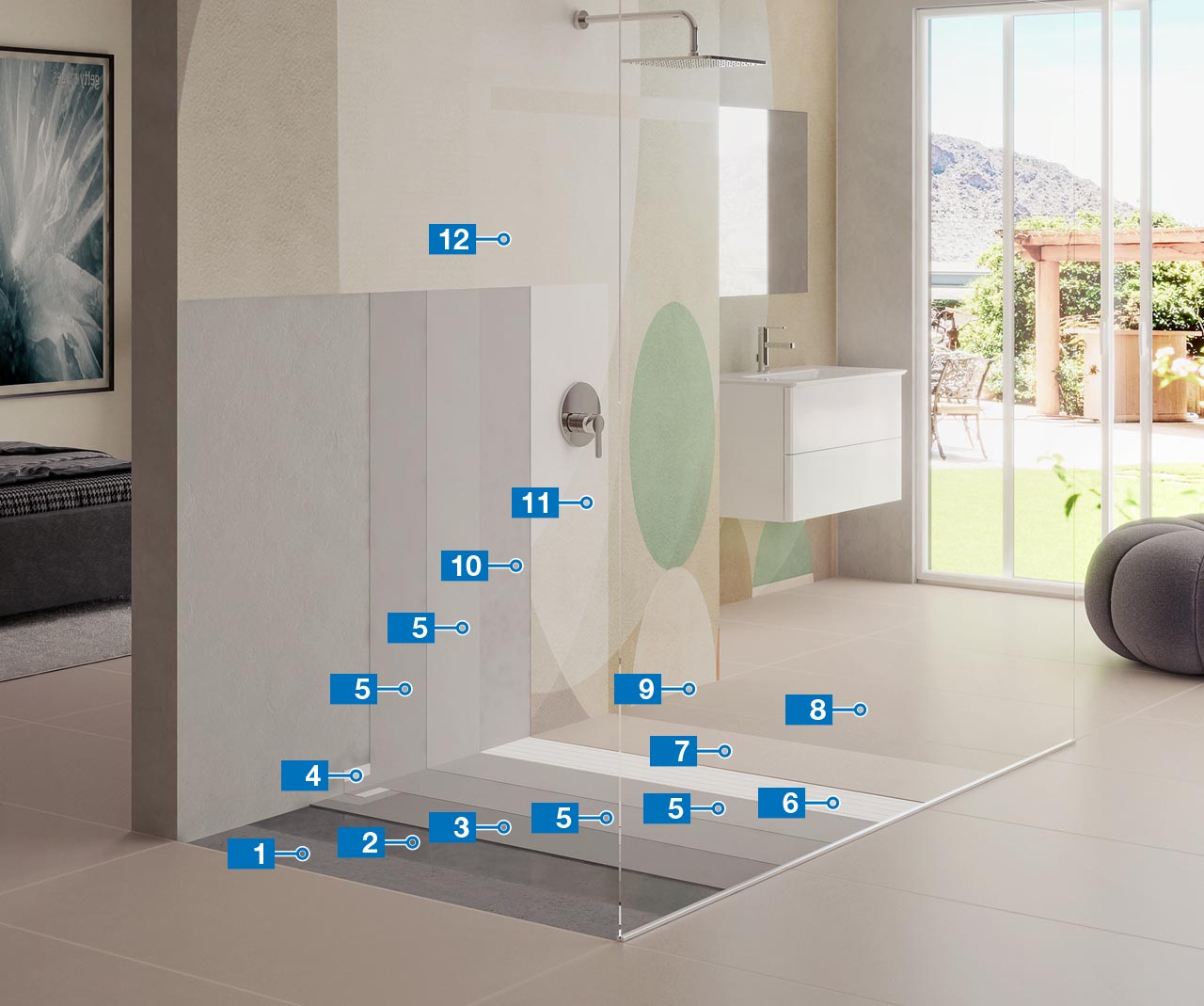

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Screed

TOPCEM PRONTO

2

Primer

ECO PRIM T PLUS

Apply the product with a brush or roller. Dilute the product according to the absorbency of the substrate.

3

Self-levelling compound

PLANEX HR MAXI

Apply a single layer 2 to 20 mm thick with a large metal trowel or rake.

4

Rubber tape

MAPEBAND PE 120

Position the tape and relative accessory items in correspondence with expansion joints, fillets between horizontal and vertical surfaces, corners and edges and bond them with MAPEGUM WPS.

5

Ready-to-use waterproofing membrane

MAPEGUM WPS

Apply the product in two, even thin layers (approx. 0.4 mm per layer) with a brush, long-pile roller or trowel. Wait until the first layer is dry before applying the second layer with a trowel crossways to the first one.

6

Adhesive

ULTRABOND ECO MS 4LVT WALL&FLOOR

Apply the product with a MAPEI No. 1 or TKB A2 notched trowel (for LVT with an uneven back or not particularly flat, use a MAPEI No. 2 or 3 or TKB B1 trowel).

7

LVT / SPC

8

Finishing

MAPECOAT 4 LVT

Before applying the product thoroughly clean the surface of the LVT with a red or green ULTRACOAT PAD. After mixing the two components as specified (comp. A : comp. B = 5 : 1 in weight), apply a crisscross layer of product with a short-pile roller (such as an ULTRACOATROLLER T3 or T5) or by airless spray.

9

Sealant

MAPESIL AC

Apply the one-component acetic silicone sealant in correspondence with expansion joints and joints between the floor and wall.

10

Adhesive

ULTRABOND ECO DECOR WET

Adhesive supplied ready to use and does not require any preparation. Apply the product with a smooth trowel.

11

Decorative glass fibre

12

Finishing

MAPECOAT DECOR PROTECTION

After mixing the two components as specified (comp. A : comp. B = 5 : 1 in weight), apply a criss-cross layer of product with a short-pile roller (such as an ULTRACOAT ROLLER T3 or T5).
