Mapetherm X2 System to double external thermal insulation

Old Building

Façade

External thermal insulation system

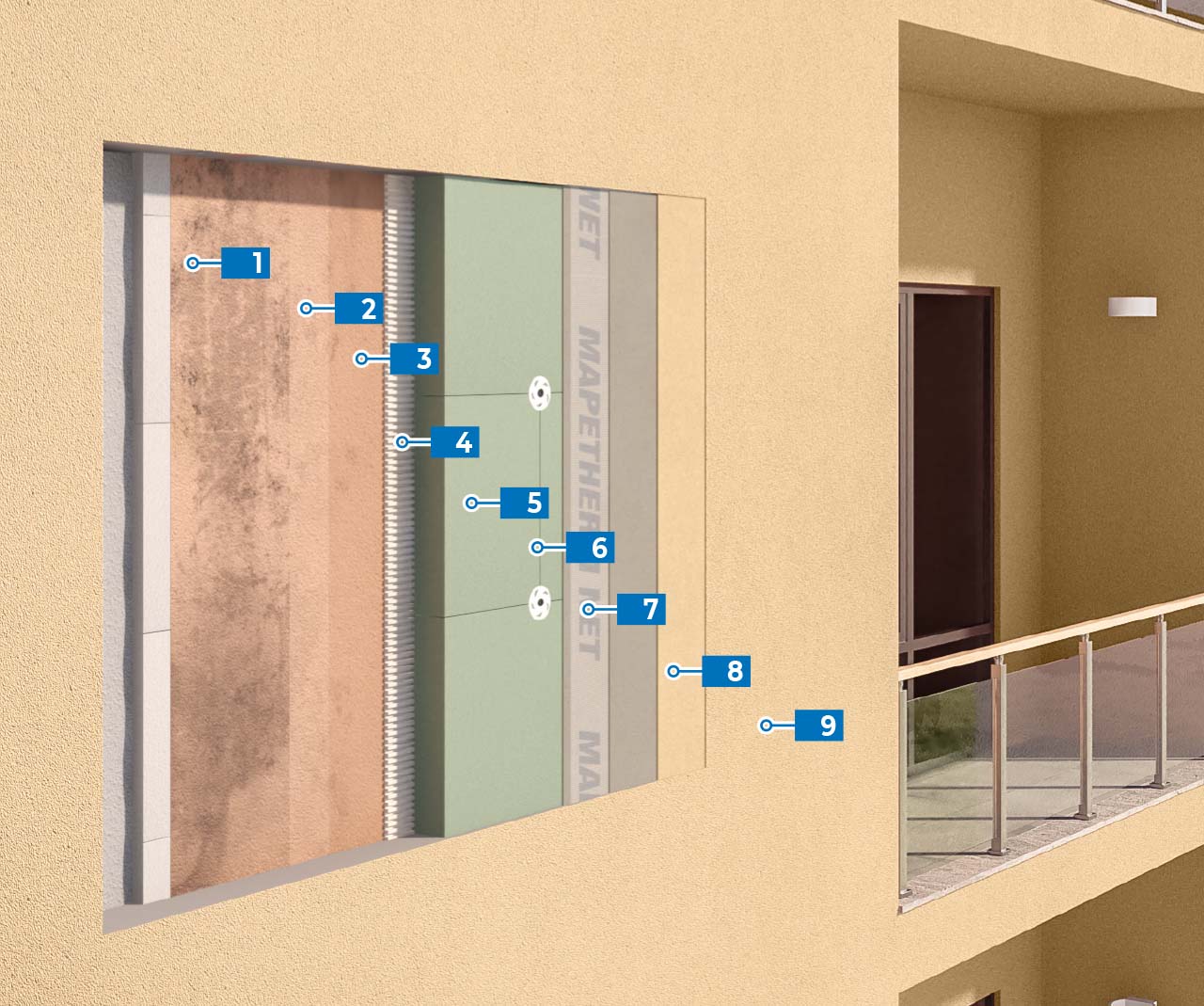

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Old damaged thermal insulation

2

High-penetration hygienising treatment

SILANCOLOR CLEANER PLUS

Apply the product with a low-pressure manual sprayer or brush and leave it to react for a few minutes, making sure it penetrates deep down into the substrate. Remove the mould with a stiff brush.

3

Acrylic primer

MALECH

Apply a coat of undercoat with a brush, roller or by spray on the clean, dry substrate.

4

Adhesive

MAPETHERM AR1 GG

Apply an even layer of adhesive on the back of the insulating panels with a notched trowel.

5

Insulating panel
SYNTERIZED EXPANDED POLYSTYRENE - RECYCLED EPS

Position the panels on the substrate in horizontal rows. The panels should be staggered at the midpoint of their longest side and by 25% in height with respect to the layout of the existing insulating panels.

6

Fasteners
MAPETHERM-EJOTHERM S1

Insert the fasteners into the set adhesive until they reach the load-bearing portion of the substrate.

7

Reinforced skimming mortar
MAPETHERM AR1 GG + MAPETHERM NET

Apply two successive layers of the skimming mortar to form a layer 4-5 mm thick. Place the reinforcing mesh on the first layer of skimming mortar while still fresh, overlapping adjacent pieces of mesh by at least 10 cm.

8

Siloxane undercoat

SILANCOLOR BASE COAT PLUS

Once the skimming mortar has cured apply a coat of undercoat with a brush, roller or by spray (not airless).

9

Acrylic siloxane coating

SILANCOLOR AC TONACHINO PLUS

Apply one or two coats of finish, according to the texture of the surface, with a stainless steel trowel.
Finish off the surface with a sponge or plastic float.
