Complete system for treating infiltrations and waterproofing existing underground structures used as service/plant areas

Old Building

Underground structures

Waterproofing

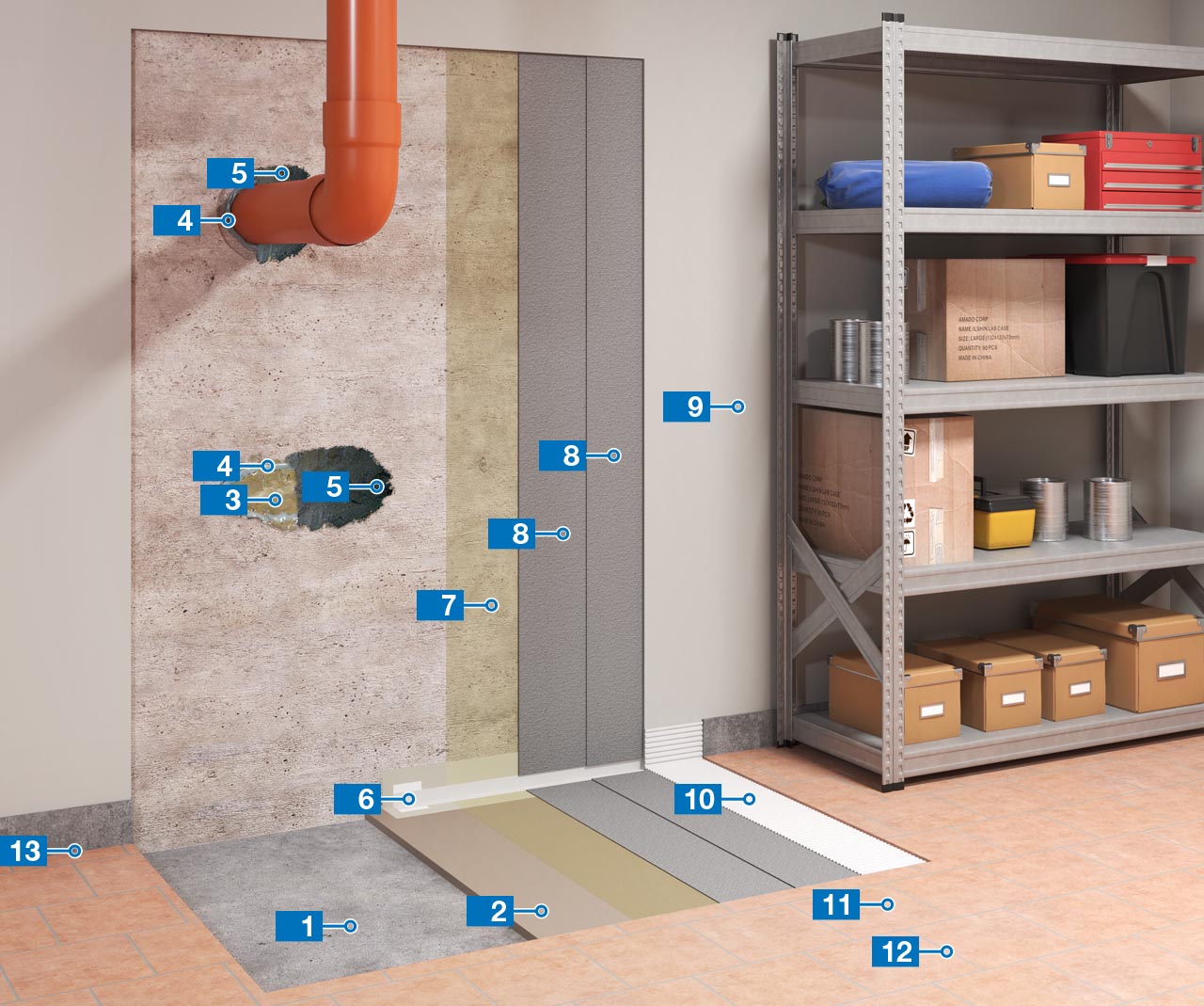

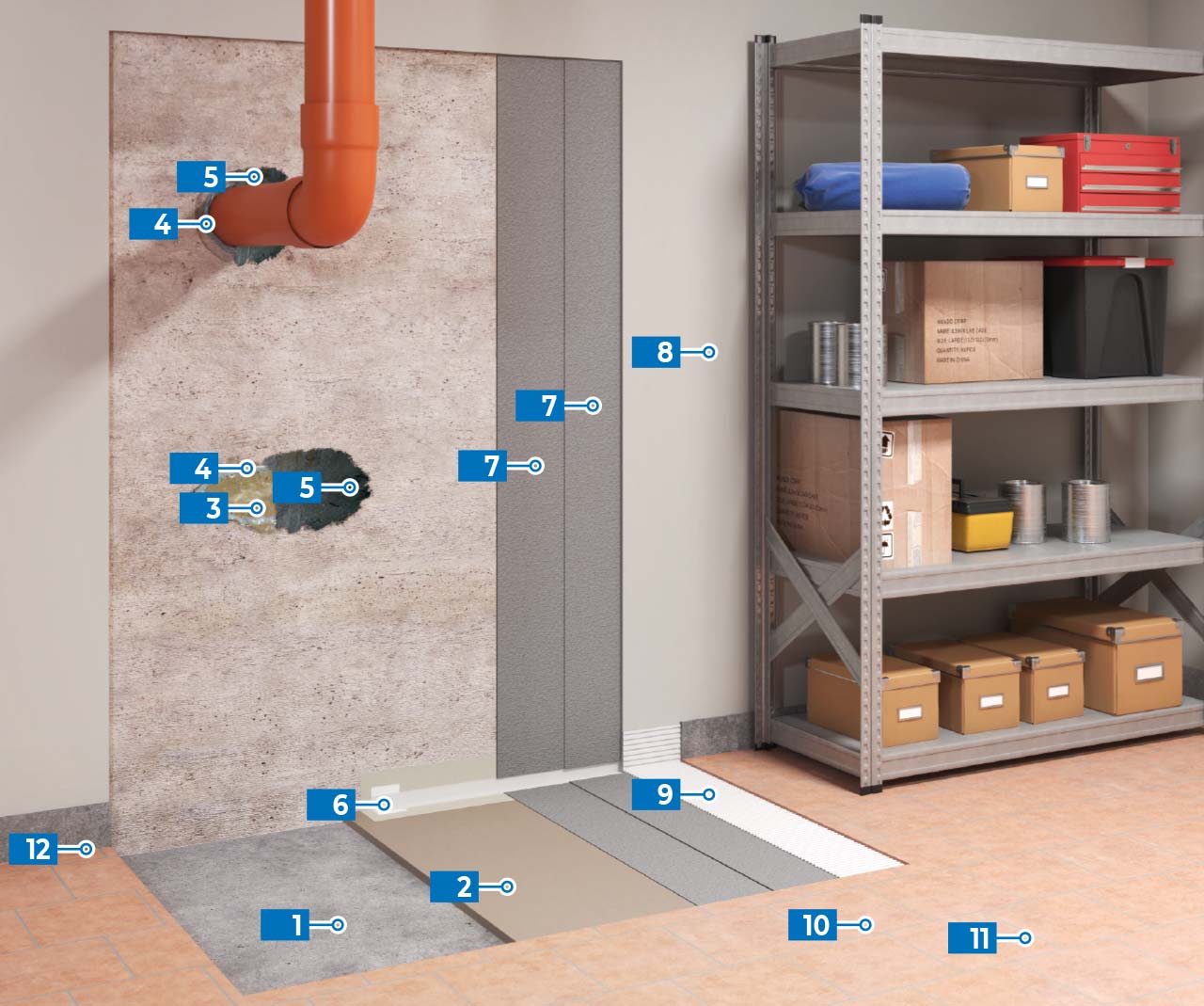

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Existing cementitious structure

2

Evening with mortars from the MAPEGROUT range

Level off the substrate with a suitable mortar from the MAPEGROUT range.

3

Hydraulic binder

LAMPOSILEX

Apply the hydraulic binder with manual tools to block infiltrations of water under pressure.

4

Waterproofing sealant

MAPEPROOF SWELL

Seal repairs or pipework by applying the cartridge of sealing product with a silicone gun.

5

Repairing with mortars from the MAPEGROUT range

Repair the substrate with a suitable mortar from the MAPEGROUT range.

6

Band MAPEBAND TPE + ADESILEX PG4 + QUARZO 0,25 - 0,5 - 0,9 - 1,2 - 1,9

Apply the elastic tape along fillets on the epoxy adhesive while still fresh. Apply a second layer of epoxy adhesive and broadcast the surface with QUARZO 0.5.

7

Primer

PRIMER 3296

Apply a coat of primer diluted 1:1 with water over all the horizontal and vertical surfaces with a roller.

8

Waterproofer

MAPELASTIC FOUNDATION

Apply two layers of product with a roller to form a total thickness of at least 2 mm.

9

Elastomeric sanitising paint

ELASTOCOLOR PITTURA PLUS

Apply with a brush, roller or by spray. 2 coats are required to ensure complete, effective coverage.

10

Adhesive

KERAFLEX MAXI S1 ZERO

Apply the adhesive using the double-buttering method with a notched trowel suitable for the type and format of the tiles so that the back of the tiles are sufficiently wetted with adhesive. While installing the tiles use levelling systems from the MapeLevel line to maintain the correct width for the grouts and to reduce lippage between adjacent tiles.

11

Tile covering

12

Grout

ULTRACOLOR PLUS

Once the adhesive has set, carefully fill the grouts to their full depth using a rubber trowel without leaving gaps or steps. When the mix starts to lose its plasticity, clean off any excess product with a damp cellulose sponge. They may also be finished off while the product is partially hardened by going over the surface with a damp abrasive pad (such as a Scotch-Brite® pad). Remove any cementitious residues with UltraCare Keranet.

13

Sealant

MAPESIL AC

Seal the perimeter and expansion joints after inserting Mapefoam to set the correct depth and then finish off the surface of the sealant with UltraCare Smooth Silicone.
