Complete system for the strengthening and waterproofing of underground masonry with structural problems and affected by seeping water.

Old Building

Foundation

Waterproofing

MAPEWALL INTONACA & RINFORZA + MAPENET EM30 / MAPENET EM40 + GAMMA PLASTIMUL

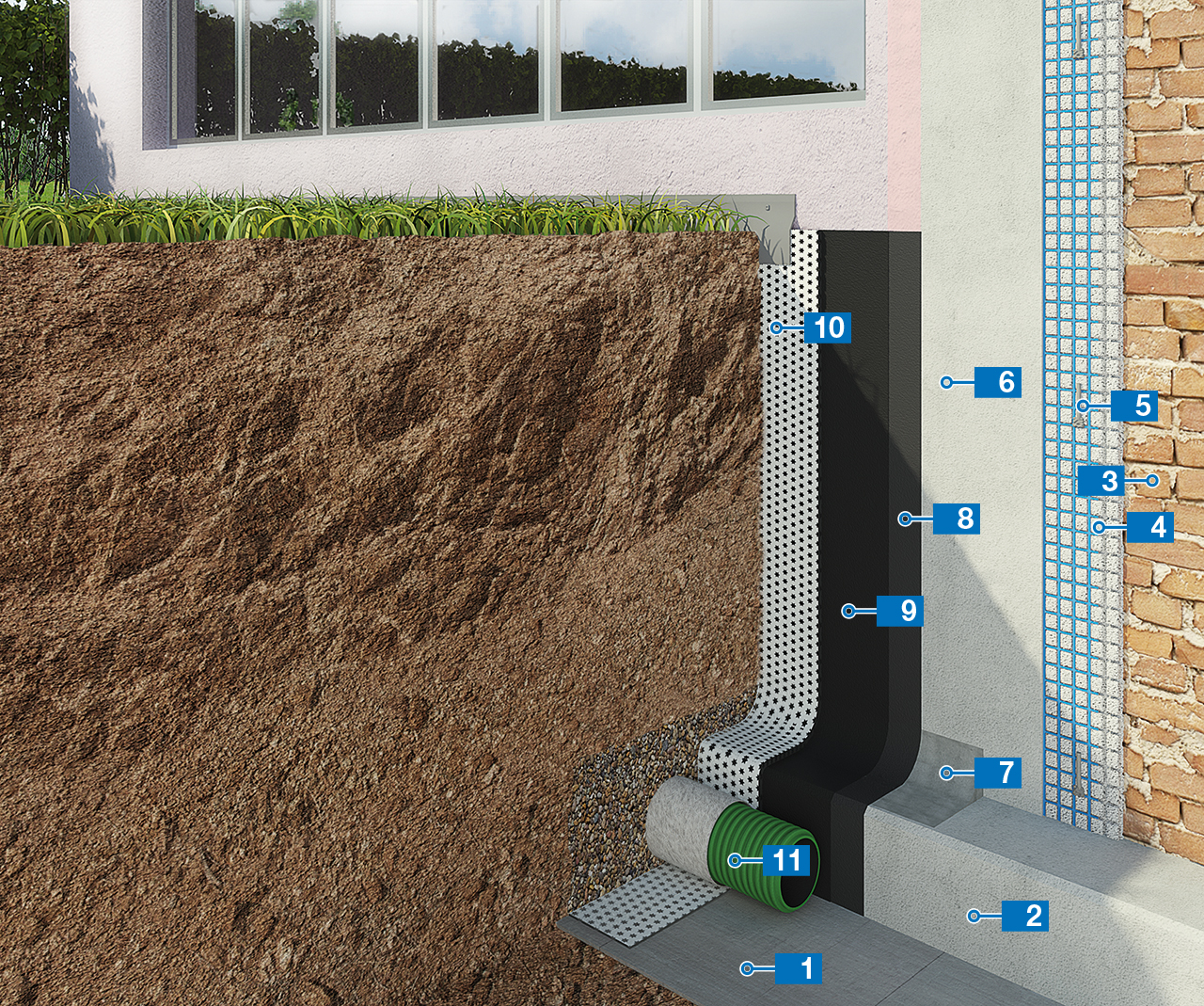

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Lean concrete

2

Existing structure in reinforced

3

Existing masonry walls

4

Structural render + mesh

MAPEWALL RENDER & STRENGTHEN

5

Mapenet EM Connector + MAPEFIX VE SF
Glass fibre connector + Chemical anchor

6

Structural render

MAPEWALL RENDER & STRENGTHEN

7

Shell made with Eporip

8

Primer

PLASTIMUL PRIMER SB

9

Waterproofing bituminous emulsion

PLASTIMUL 2K REACTIVE

10

Non-woven fabric combined to HDPE Polyfond Kit Drain produced by Polyglass

11

Drainage pipe

Technical pack

Download with one click all technical documents related to this solution
