CRM SYSTEM - MAPENET EMR

THE ONLY CVT AND EPD CERTIFIED CRM SYSTEM WITH FULLY OFFSET RESIDUAL CO₂ EMISSIONS.

CRM SYSTEM - MAPENET EMR

THE ONLY CVT AND EPD CERTIFIED CRM SYSTEM WITH FULLY OFFSET RESIDUAL CO₂ EMISSIONS.

QUICK AND EASY

EXCELLENT MECHANICAL PROPERTIES

HIGH CHEMICAL RESISTANCE

VARIOUS TYPES

Mapei CRM SYSTEM - MAPENET EMR is the only certified strengthening system with reinforced plaster, designed with optimised formulas to reduce the environmental impact.

CVT certified system
EPD certified products with fully offset residual CO₂ emissions
For strengthening masonry and concrete structures
Optimised to be used with EPD-certified cementitious and cement-free pure lime-based structural mortars with fully offset residual CO₂ emissions such as MAPEWALL RENDER & STRENGTHEN, MAPEWALL RENDER & STRENGTHEN 10, Mape-Antique NHL Eco Strutturale, Mape-Antique NHL Eco Strutturale 10.

CRM SYSTEM - MAPENET EMR consists of:

Mapenet EMR preformed glass fibre mesh (GFRP) with variable mesh and dimensions (33/66/99 mm)
preformed corner elements
connectors of various lengths
structural mortars

CRM SYSTEM - MAPENET EMR has the following advantages:

Lightweight, easy to handle and place
excellent tensile strength,
high dimensional stability,
excellent resistance to chemical aggression and atmospheric agents. The durability of the components of CRM SYSTEM - MAPENET EMR has in fact been tested in extreme conditions for more than 3000 hours.

REQUEST A TECHNICAL CONSULTATION

Request a CVT Certificate

CRM system for consolidating weak masonry by applying natural hydraulic lime-based “reinforced” structural render

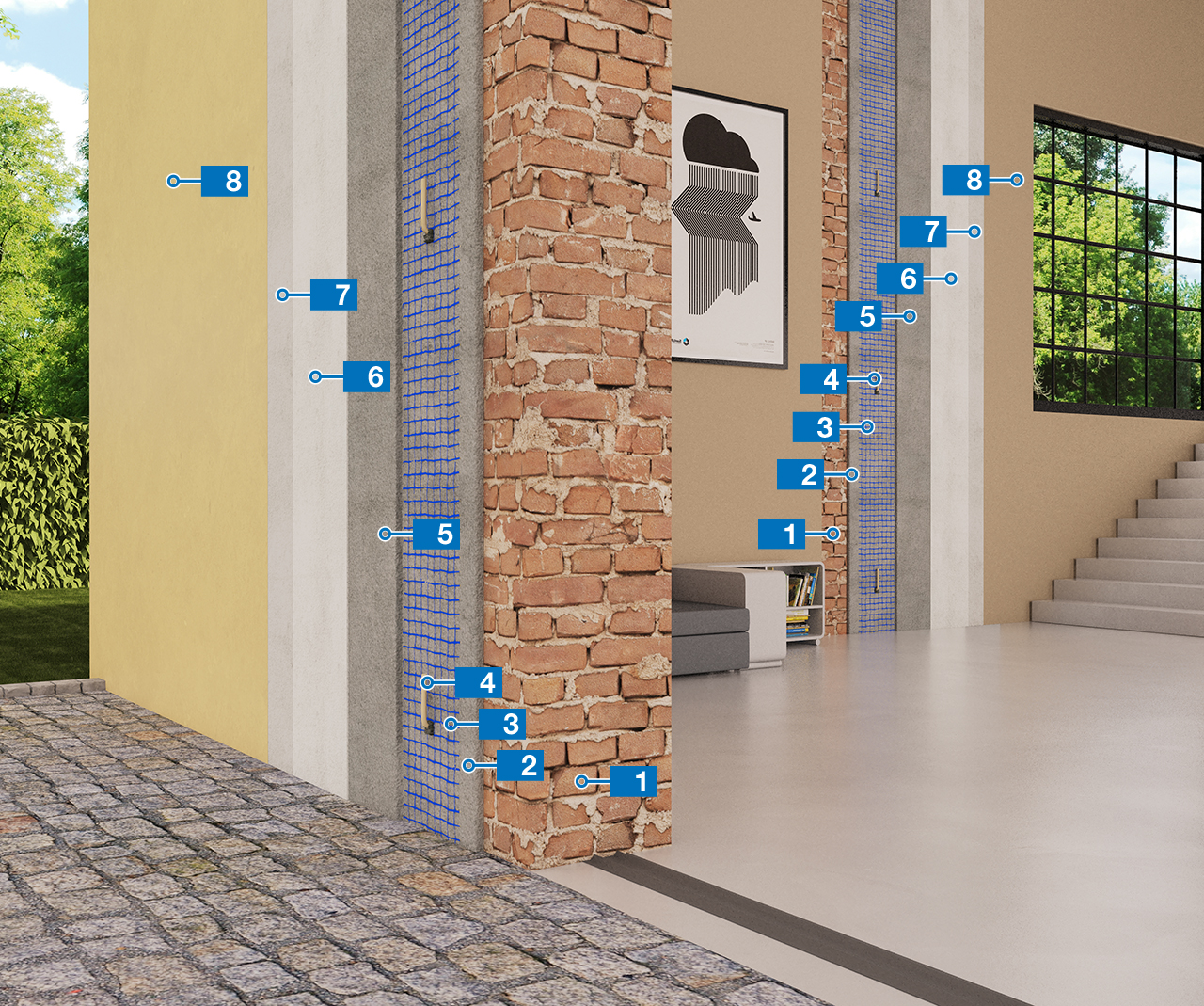

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Existing masonry

2

Fibre-reinforced mortar
MAPEWALL RENDER & STRENGTHEN or MAPEWALL RENDER & STRENGTHEN 10

Apply a first layer of product 1.5 cm thick with a trowel or rendering machine.

3

Alkali-resistant fiberglass mesh
CRM SYSTEM - MAPENET EMR 33 or CRM SYSTEM - MAPENET EMR 66 or CRM SYSTEM - MAPENET EMR 99

Place the mesh on the mortar and press it down lightly with a flat trowel so that it adheres perfectly to the mortar.

4

Connector
MAPENET EMR CONNECTOR
Chemical anchor
MAPEFIX VE SF

Position the connectors with MAPEFIX VE SF in the holes drilled previously.

5

Fibre-reinforced mortar
MAPEWALL RENDER & STRENGTHEN or MAPEWALL RENDER & STRENGTHEN 10

Apply a second layer of product 1.5 cm thick with a trowel or rendering machine so that it completely covers the mesh and connectors.

6

Breathable skimming mortar

Apply the product to create a lime-based breathable skim coat.

7

Siloxane undercoat

SILANCOLOR PRIMER

Apply the primer with a brush, roller or by spray.

8

Siloxane paint

SILANCOLOR PITTURA ZERO

Apply 2 coats of paint with a brush, roller or by spray.

Discover CRM Mapei systems

Discover MAPEI mortars for CRM systems
